17 00 005 Draining and topping up coolant (N47 D16/20 K/U/O/T 1)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 2 030

WARNING: Risk of scalding!
Only carry out repair work on the cooling system after the engine has cooled down!

IMPORTANT: Lifetime coolant filling:
Never reuse used coolant!
When replacing and removing components which rely on the corrosion protection effect of the coolant, it is essential to change the coolant. The cooling system must therefore be drained and refilled.
In the case of other removal work involving the draining of part quantities of coolant, replace these quantities which have been drained with new coolant.

Installation note:

Use ONLY RECOMMENDED COOLANT .

Observe MIXTURE RATIO .

Protective measures/rules of conduct:

Wear safety goggles
Wear protective gloves
Observe national/country-specific regulations

IMPORTANT: For dirt contamination of the cooling system (e.g. by engine oil), the cooling system must be rinsed with water until all dirt contamination is removed!

IMPORTANT: Risk of skidding due to coolant on the floor.
Danger of injury!

Catch and dispose of drained coolant in drip tray (1) and if necessary special tool 00 2 030 (universal hydraulic lifting equipment).

Recycling:

Fig 1: Identifying Drip Tray And Special Tool (00 2 030)

Courtesy of BMW OF NORTH AMERICA, INC.

Observe country-specific waste disposal regulations.

Necessary preliminary tasks:

Follow notes for CARRYING OUT REPAIR WORK ON THE COOLING SYSTEM .
Remove UNDERBODY PROTECTION
Remove intake silencer housing . See 13 71 000 REMOVING AND INSTALLING/REPLACING INTAKE SILENCER HOUSING (N47 D16/20 K/U/O/T 1) or 13 71 000 REMOVING AND REFITTING/REPLACING INTAKE FILTER HOUSING (N47 D20 O 1 WITH SCR) .

Draining coolant:

Open sealing cap (1) on coolant expansion tank.

Installation note:

Close sealing cap (1) until the arrow marks line up.

Fig 2: Identifying Coolant Expansion Tank Sealing Cap

Courtesy of BMW OF NORTH AMERICA, INC.

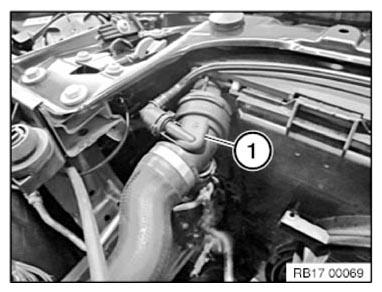

Unlock and detach coolant hose (1) from radiator at top.

Fig 3: Identifying Radiator Coolant Hose

Courtesy of BMW OF NORTH AMERICA, INC.

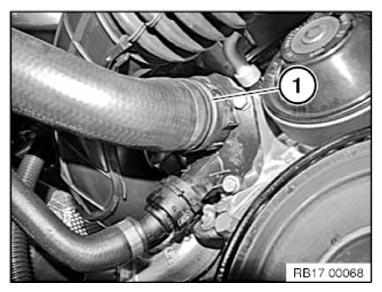

Unfasten and detach coolant hose (1) from the coolant thermostat.

Drain, catch and dispose of coolant.

Fig 4: Identifying Coolant Thermostat Coolant Hose

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Adding coolant:
Use ONLY RECOMMENDED COOLANT .
Observe MIXTURE RATIO .
Observe CAPACITIES .
Observe bleeding instructions without fail.
FILL AND BLEED COOLING SYSTEM .
Visual inspection of cooling system for tightness.
