41 62 043 Removing And Installing/Replacing Left Hinge For Tailgate
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Read relevant service information under BODY, GENERAL .
Carry over schematic diagram to the relevant vehicle type.
Necessary preliminary tasks:
- Remove TAILGATE
- Remove tension spring/spindle drive. See TENSION SPRING and SPINDLE DRIVE .
- Remove PANEL FOR STORAGE SHELF
- Remove LUGGAGE COMPARTMENT WHEEL ARCH PANEL .

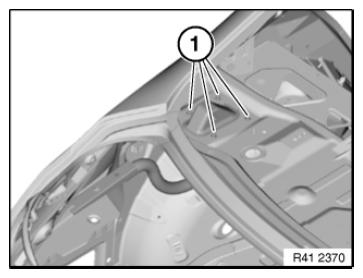

Open screw connections (1) on vehicle.
Remove hinge.
Installation note:
Tightening torque 41 62 2AZ .
ADJUST hinge together with tailgate.
