41 61 000 Removing And Installing Engine Compartment Lid
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Danger of injury!
Support engine compartment lid in fully opened position with suitable apparatus.
Removal of the engine compartment lid must be carried out with the assistance of a second person.
Support engine compartment lid in fully opened position with suitable apparatus.
Removal of the engine compartment lid must be carried out with the assistance of a second person.
IMPORTANT:
These instructions only apply to vehicles without active pedestrian protection!
Observe separate procedure for vehicles with ACTIVE PEDESTRIAN PROTECTION !
Observe separate procedure for vehicles with ACTIVE PEDESTRIAN PROTECTION !
Carry over schematic diagram to the relevant vehicle type.

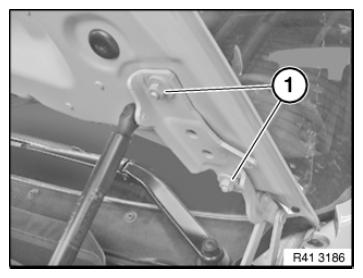

Unscrew nuts (1).
Remove engine compartment lid.
Installation note:
Install engine compartment lid at screw locations to on hinge.
Tightening torque 41 61 1AZ .
If necessary, adjust ENGINE COMPARTMENT LID .
