41 61 060 Removing And Installing/Replacing Left Hinge For Engine Compartment Lid (Vehicles From 09/2011)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Support engine compartment lid in fully opened position with suitable apparatus. Risk of injury.

IMPORTANT: Observe separate procedure for vehicles with ACTIVE PEDESTRIAN PROTECTION .

Necessary preliminary tasks:

Remove GAS PROP for engine compartment lid

Position suitable cloth under engine compartment lid without gaps.

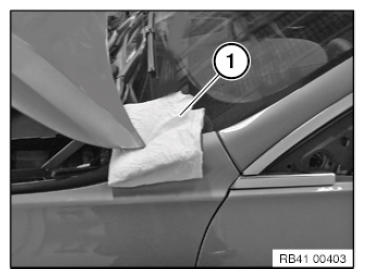

Fig 1: Positioning Cloth Under Engine Compartment Lid Without Gaps

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: After screws have been slackened no lateral forces must be exerted on the engine compartment lid!
Secure engine compartment lid with a second person.

Release screws (1).

Tightening torque 41 61 1AZ .

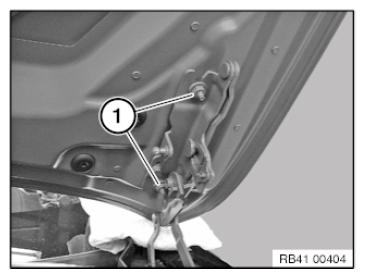

Fig 2: Identifying Engine Compartment Lid Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove hinge.

Tightening torque 41 61 3AZ .

Installation note:

ADJUST hinge together with engine compartment lid.

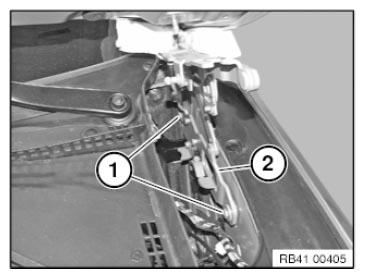

Fig 3: Identifying Engine Compartment Lid Hinge And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
