41 61 010 Removing And Installing Engine Compartment Lid (Active Pedestrian Protection AFGS)
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Danger of injury!
The BATTERY EARTH LEAD must be clamped off on vehicles with AFGS active pedestrian protection!
Adhere to the following SAFETY INFORMATION so as to avoid a danger of injury by the actuator.
The BATTERY EARTH LEAD must be clamped off on vehicles with AFGS active pedestrian protection!
Adhere to the following SAFETY INFORMATION so as to avoid a danger of injury by the actuator.
IMPORTANT:
Support engine compartment lid in fully opened position with suitable apparatus.
Removal of the engine compartment lid must be carried out with the assistance of a second person.
Removal of the engine compartment lid must be carried out with the assistance of a second person.
Follow instructions on ACTIVE PEDESTRIAN PROTECTION system.
Necessary preliminary tasks:
Disconnect BATTERY EARTH LEAD

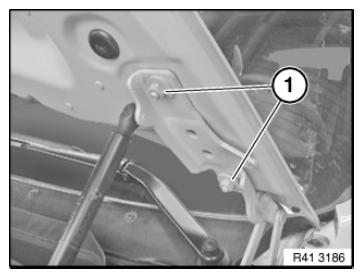

Unscrew nuts (1).
Remove engine compartment lid.
Installation note:
Install engine compartment lid at screw locations to on hinge.
Tightening torque 41 61 1AZ .
If necessary, adjust ENGINE COMPARTMENT LID .
