52 24 037 Removing and installing/replacing seat frame

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR SEAT

Optional equipment with seat heating only:

Unfasten plug connection (1) and disconnect.

Feed wiring harness out of plastic hooks.

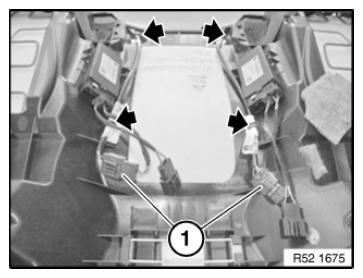

Fig 1: Locating Wiring Harness Plastic Hooks

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage cover welt in marked area from plastic hooks.

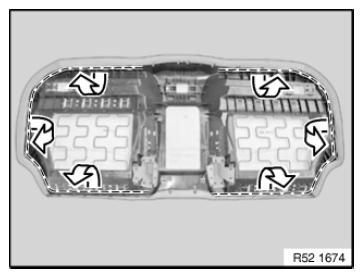

Fig 2: Disengaging Cover Welt From Plastic Hooks

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen retainers (1).

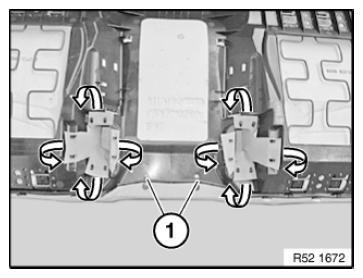

Fig 3: Identifying Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen retainers (1).

Disengage cover tabs from plastic hooks.

Remove padding with seat cover from seat frame.

Replacement only:

If necessary, remove CONTROL UNIT for seat heating.

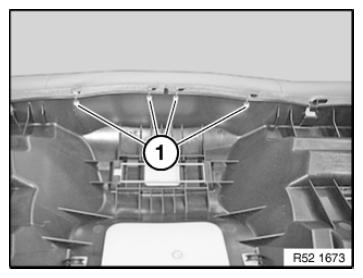

Fig 4: Disengaging Cover Tabs From Plastic Hooks

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Remove all remnants of retainers.

Insert new retainers with special tool 52 0 050 .
