61 35 095 Removing and installing control unit/module for seat heating (rear seat)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary tasks:

REMOVE AND INSTALL REAR SEAT

Disconnect plug connection (1).

Unclip clip (2) and remove control unit for seat heating (3).

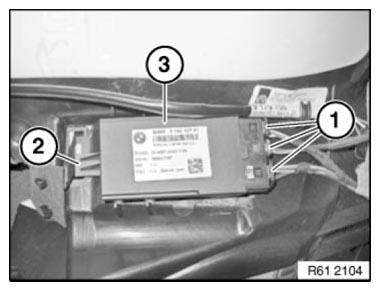

Fig 1: Identifying Clip, Plug Connection And Control Unit For Seat Heating

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure mount (1) and retaining lugs (3) of control unit for seat heating (2) are correctly seated.

Fig 2: Identifying Mounting, Retaining Lugs And Control Unit For Seat Heating

Courtesy of BMW OF NORTH AMERICA, INC.
