52 24 005 Removing and installing / replacing rear seat

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Unclip rear seat on left and right towards top.

Installation note:

Feed seat belt buckles (1) into recesses in rear seat.

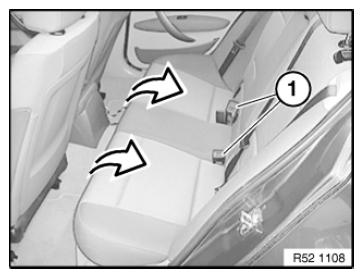

Fig 1: Feeding Seat Belt Buckles Into Recesses In Rear Seat

Courtesy of BMW OF NORTH AMERICA, INC.

Optional equipment with seat heating only:

Unlock and disconnect plug connections (1) for backrest heating.

Unlock plug connections (2) and disconnect.

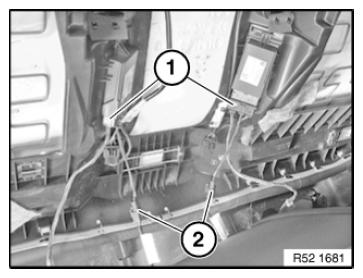

Fig 2: Identifying Backrest Heating Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.
