51 34 471 Replacing rear left or right door window glass (with roller sun blind)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

First move door window glass into position, see next work step
Remove DECORATIVE STRIP FROM WINDOW FRAME
Remove SOUND INSULATION
Remove ROLLER SUN BLIND ON SIDE WINDOW
Remove trims from window frame. See TRIM (FRONT) and TRIM (REAR) .

Open door window glass (1) up to measurement "A"

A = approx. 150 mm

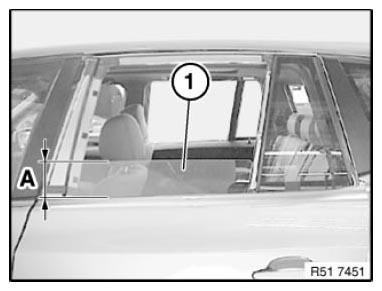

Fig 1: Identifying Door Window Glass Opening Measurement

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug (1) (risk of trapping).

Release locating clip (2).

Installation:

If necessary, INITIALIZE POWER WINDOW .

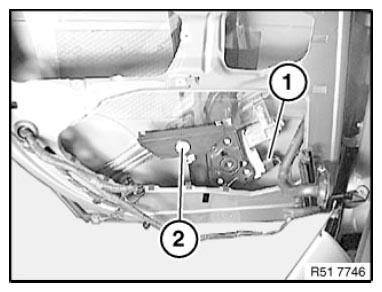

Fig 2: Identifying Plug And Locating Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Remove door window glass (1) towards top.

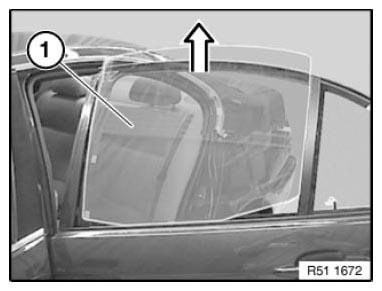

Fig 3: Removing Door Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.
