51 34... Removing and installing trim on window frame of rear door (rear), left or right

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove WINDOW CAVITY COVER STRIP
DETACH COVER from window frame

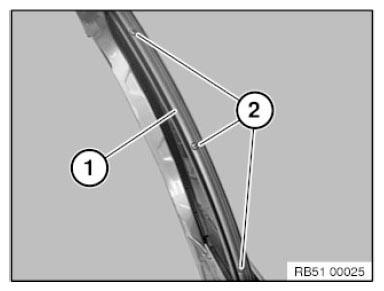

Feed out rubber window seal (1) in vicinity of cover.

Installation note:

Follow INSTRUCTIONS for fitting rubber window seals.

Fig 1: Feeding Out Rubber Window Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew screws (2) from cover (1).

Tightening torque 51 35 5AZ .

Fig 2: Identifying Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

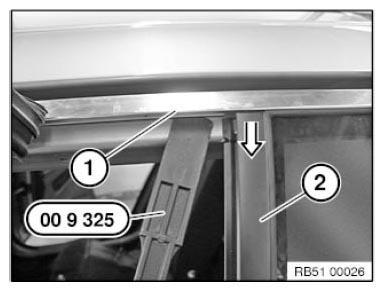

Lift frame trim from window frame (1) a little way using a special tool 00 9 325 and move cover (2) downwards.

Installation note:

Engage frame trim correctly into retaining clips at window frame (1) if necessary.

Fig 3: Lifting Frame Trim From Window Frame Using Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

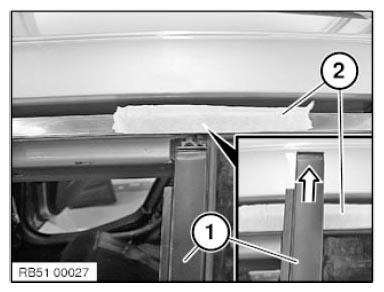

Mask off frame trim at window frame with adhesive tape (2).

Carefully tilt cover (1) outwards, pull out upwards and lay it down.

Fig 4: Pulling Out Cover

Courtesy of BMW OF NORTH AMERICA, INC.
