51 34 380 Remove and install/replace frame trim on window frame of rear door (outer) on left or right

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SEAL FOR DOOR GAP / ROOF FRAME
Remove COVER ON DOOR WINDOW FRAME

Pull out rubber window seal in the frame trim area on the window border (1) (graphic shows removed status).

Lever out frame trim on window border (1) from the front beginning with special tool 00 9 325 .

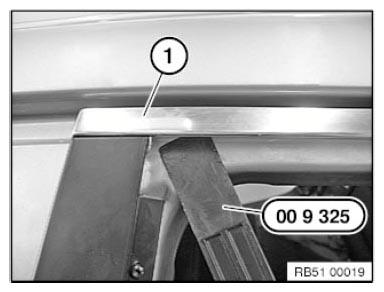

Fig 1: Removing Frame Trim On Window Border Using Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully pull off frame trim (1) in outwards direction.

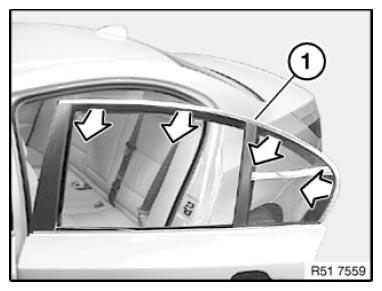

Fig 2: Pulling Off Frame Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace faulty clamps (1).

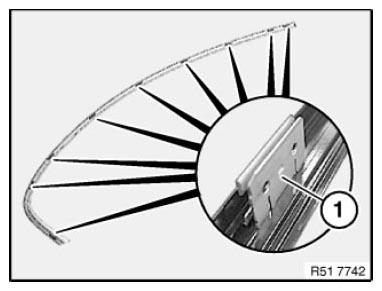

Fig 3: Identifying Faulty Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Only for Saloon vehicle type:

Feed in the frame trim on the window border (1) at the rear correctly behind the window cavity cover strip.

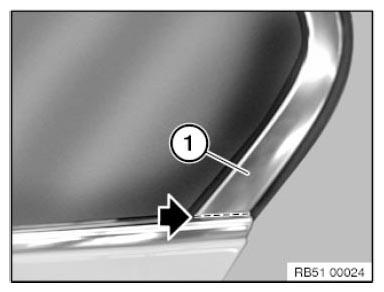

Fig 4: Identifying Frame Trim On Window Border
Courtesy of BMW OF NORTH AMERICA, INC.
