51 34 191 Replacing left or right fixed door window in rear window frame

Necessary preliminary tasks:

• Remove DECORATIVE STRIP ON WINDOW FRAME  of rear door
• Remove COVER ON DOOR WINDOW FRAME
• Remove WINDOW CAVITY COVER STRIP  on inside of rear door

Version with roller sun blind only:

• Remove ROLLER SUN BLIND

Partially pull rubber guide (1) out of side window guide.

Release screws underneath in window guide.

Tightening torque: 51 35 5AZ .

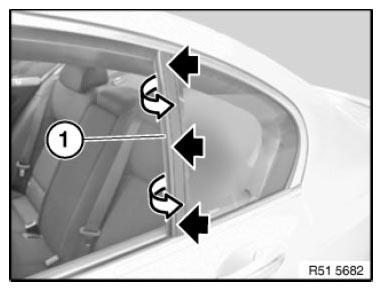

Fig 1: Pulling Rubber Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Feed guide rail (1) out of door structure.

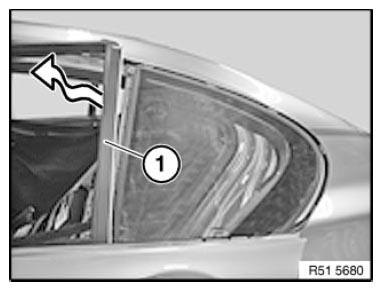

Fig 2: Feeding Guide Rail Out Of Door Structure

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Replacement only:

Apply butyl from rear in screwing area.

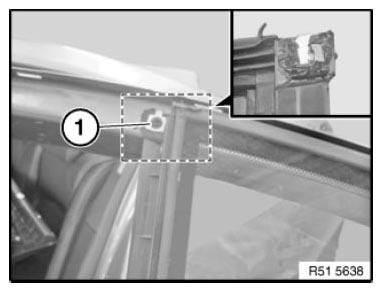

Fig 3: Identifying Rear Window Frame Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque: 51 35 3AZ .

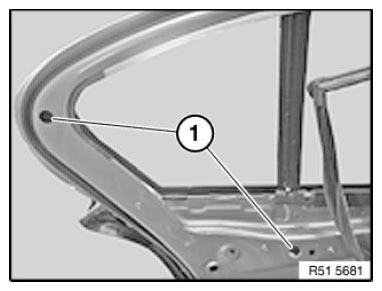

Fig 4: Identifying Rear Window Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully remove door window glass.

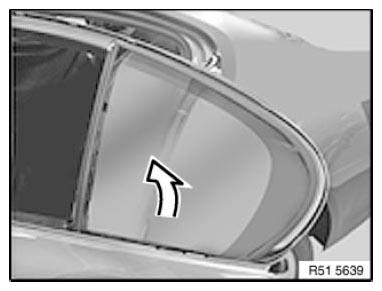

Fig 5: Removing Door Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.
