51 16... Removing and installing/replacing side trim panels on center console on left or right

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

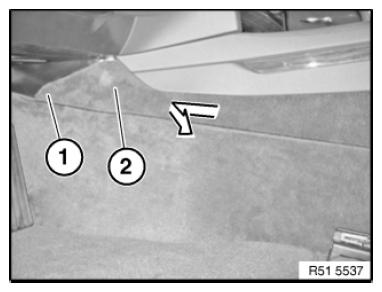

Release screw (1).

Slide trim panel (2) in direction of arrow and remove.

Fig 1: Sliding Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

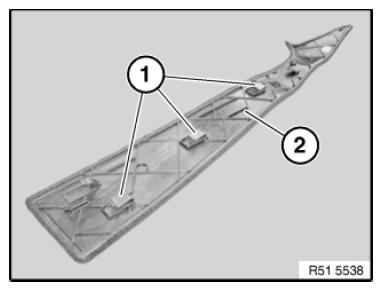

Retainers (1) must be correctly seated in panel guides (2).

Fig 2: Identifying Retainers And Panel Guides

Courtesy of BMW OF NORTH AMERICA, INC.

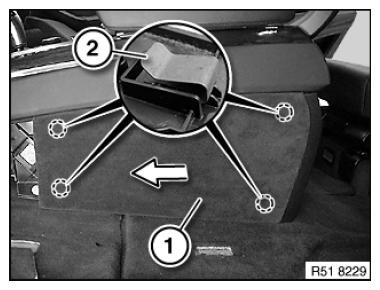

Feed side carpet (1) towards front out of center console.

Installation note:

Replace faulty retainers (2).

Fig 3: Feeding Side Carpet Front Out Of Centre Console

Courtesy of BMW OF NORTH AMERICA, INC.
