51 16 172 Removing and installing/replacing center armrest storage compartment

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Unlock center armrest storage compartment (1) with a suitable tool at points (2) and raise slightly.

Unlock and disconnect plug connections behind.

Remove center armrest storage compartment (1).

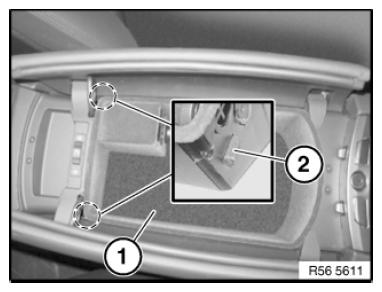

Fig 1: Identifying Centre Armrest Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove LED FOR CENTRE ARMREST STORAGE COMPARTMENT
Remove USB/AUDIO INTERFACE CONNECTING SOCKET
Remove EJECT BOX
