51 11 050 Removing and installing/renewing carrier for front bumper trim: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front BUMPER TRIM
Remove fanfare horn on left and right. See LEFT FANFARE HORN and RIGHT FANFARE HORN .

Remove impact absorber (1) towards front.

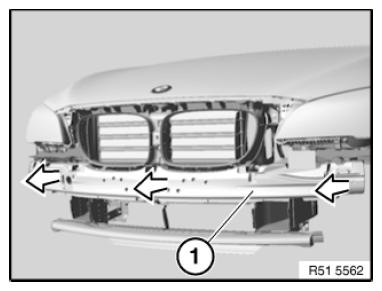

Fig 1: Removing Impact Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) on brake air duct (1).

Remove brake air duct (1) in direction of arrow.

Fig 2: Removing Brake Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

If ACC optional extra is installed:

Release screws (3) on ACC sensor bracket (1).

Tightening torque: 66 31 1AZ .

Unfasten plug connection (2) and disconnect.

Remove ACC sensor bracket (1).

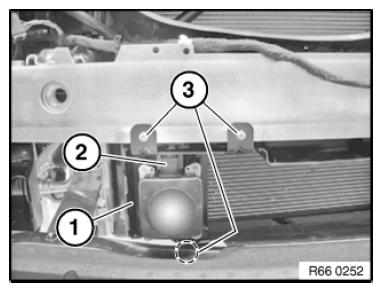

Fig 3: Identifying ACC Sensor Bracket, Screws And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (2).

Tightening torque: 51 11 4AZ .

Unclip wiring harness (4) at marked points.

If necessary, unlock and disconnect plug connections (5) on short-range sensors.

Remove carrier (1) towards front.

Installation:

Make sure locking sleeve (3) is correctly seated in carrier (1).

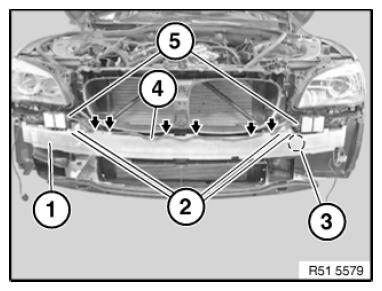

Fig 4: Identifying Wiring Harness, Plug Connections, Carrier, Locking Sleeve And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
