51 37 000 Removing and installing / replacing complete rear left or right power window regulator: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of injury!
Carry out work on the power window regulator only when the power window motor is de-energized.

Necessary preliminary tasks:

Remove rear side window glass. See WINDOW GLASS (WITHOUT ROLLER SUN BLIND) or WINDOW GLASS (WITH ROLLER SUN BLIND) .

Slacken bolt (1).

Tightening torque 51 35 11AZ .

Release screws (4).

Tightening torque 51 35 2AZ .

Disconnect plug connection (5).

Feed out power window regulator (3).

Installation note:

Holder (2) must be correctly seated on inner door panel rail.

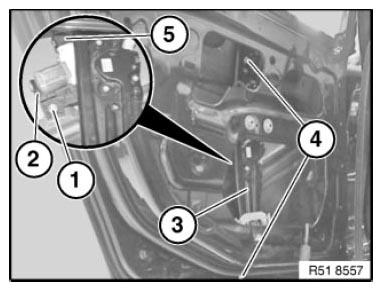

Fig 1: Identifying Plug Connection, Power Window Regulator, Holder, Screws And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

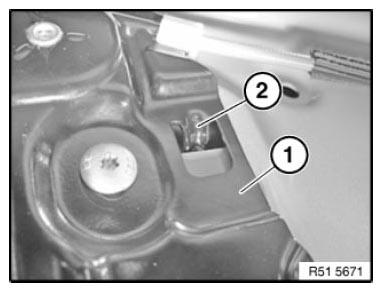

Installation note:

Make sure guide lug (2) of power windows (1) is correctly seated in recess of door structure.

Fig 2: Identifying Guide Lug And Power Window Unit

Courtesy of BMW OF NORTH AMERICA, INC.
