34 52 121 Removing and installing/renewing ICM control unit: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD protection).

Necessary preliminary tasks:

Disconnect BATTERY NEGATIVE LEAD
Remove SIDE TRIM PANEL on center console on left and right
Remove CENTRE ARMREST STORAGE COMPARTMENT
Remove REAR CENTRE CONSOLE TRIM

Open ashtray cover (1).

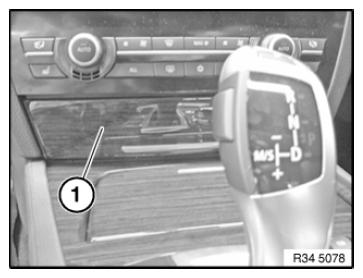

Fig 1: Identifying Ashtray Cover

Courtesy of BMW OF NORTH AMERICA, INC.

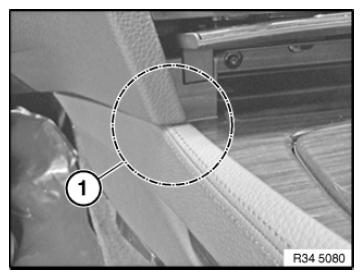

IMPORTANT: Risk of damage in area (1) of center console on left and right!

Fig 2: Identifying Centre Console Damage Area

Courtesy of BMW OF NORTH AMERICA, INC.

Release left and right screws (1).

Installation:

Tightening torque 51 16 7AZ .

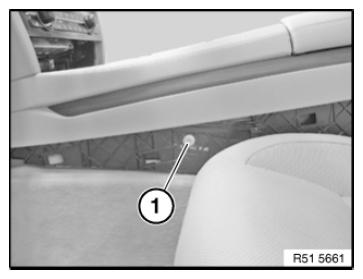

Fig 3: Identifying Centre Console Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on center console carrier.

Installation:

Tightening torque 51 16 4AZ .

IMPORTANT: Risk of damage to center console (2)!

Observe the following instruction exactly.

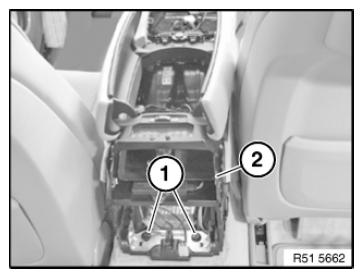

Fig 4: Identifying Centre Console And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Raise center console (1) at rear (A) 7 cm.

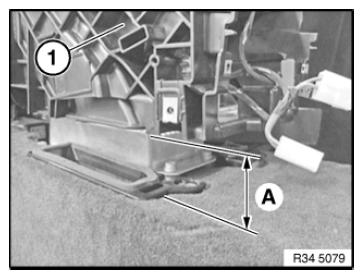

Fig 5: Identifying Centre Console

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Picture shows center console removed.

Unfasten screws (2).

Installation:

Replace screws.

Tightening torque 34 51 2AZ .

Swing out ICM control unit (3).

Disconnect plug connection (1).

IMPORTANT: Do not trap any electrical leads when installing ICM control unit!

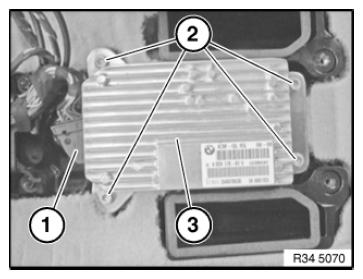

Fig 6: Identifying ICM Control Unit, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
