33 32 131 Removing and installing/replacing a steering stub/wheel carrier: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Remove REAR WHEEL .

IMPORTANT: Expand anti-twist lock sufficiently to avoid damaging thread when releasing collar nut.

Release collar nut (1), activate parking brake for this purpose.

Tightening torque 33 41 1AZ .

Installation note:

Lightly oil the gearing at the shaft journal.

No oil permitted on thread of shaft journal or collar nut.

Replace collar nut (1) by positive peening at flat areas of output shaft.

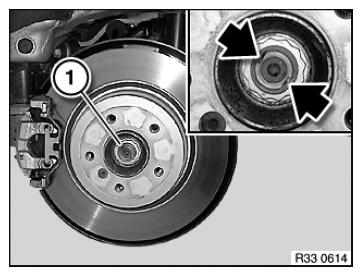

Fig 1: Releasing Collar Nut

Courtesy of BMW OF NORTH AMERICA, INC.

For F01/F02/F04:

Remove PARKING BRAKE SHOE EXPANDER .
Remove parking brake Bowden cable from wheel carrier.

Remove WHEEL BEARING (do not pull out drive flange).

Remove PULSE SENSOR FROM WHEEL CARRIER .

Remove spring strut from wheel carrier. See REAR LEFT/RIGHT SPRING STRUT or REAR LEFT/RIGHT AIR SUSPENSION STRUT .

IMPORTANT:

Check sensor head and line from pulse sensor prior to installation for external damage, replacing if necessary.

IMPORTANT: Secure wheel carrier against falling out.

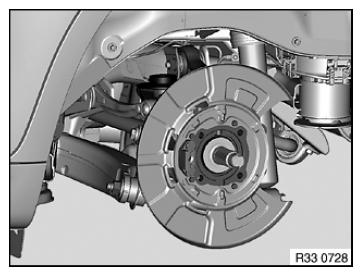

Fig 2: Identifying Wheel Carrier And Brake Cover Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Remove INTEGRAL LINK from wheel carrier.

Remove TOE ARM FROM WHEEL CARRIER .

Remove UPPER WISHBONE FROM WHEEL CARRIER .

Remove SWINGING ARM ON WHEEL CARRIER .

Remove wheel carrier.
