37 12 1090 Removing and installing rear left or right spring strut

WARNING: This page is about a different car, the 2011 BMW 750xi and 2010 BMW 750xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Release screw (1).

Tightening torque 33 52 3AZ .

IMPORTANT: Secure spring strut shock absorber against falling out.

Remove spring strut shock absorber from wheel carrier and tie up.

Installation:

Replace screw.

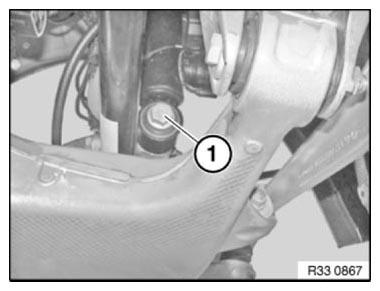

Fig 1: Identifying Air Suspension Strut Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) and remove from cable guide (2).

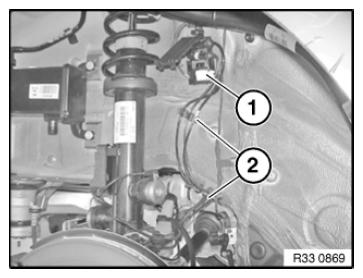

Fig 2: Identifying Cable Guide And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Fold back sound insulation (1) and release nuts (2).

Tightening torque 33 52 1AZ .

Installation:

Replace self-locking nuts.

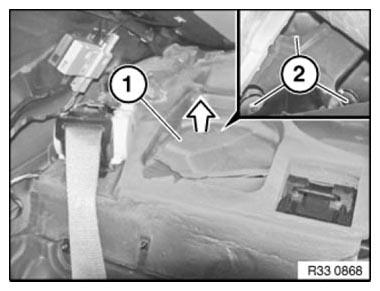

Fig 3: Folding Sound Insulation Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

Press wheel carrier downwards, guide spring strut shock absorber downwards between guide arm and control arm and then remove in upwards direction.

Fig 4: Removing Guide Spring Strut Shock Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Before tightening screw connection, check that spring strut shock absorber pin is correctly positioned in wheel carrier.
