32 11 100 Replacing gaiter for steering box on left or right: Notes
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
The hydraulic steering gear must be replaced if the polished surface of the rack is damaged (e.g. by corrosion)!
Necessary preliminary tasks:
- Remove UNDERBODY PROTECTION
- Remove TRACK ROD END
Clean track rod.

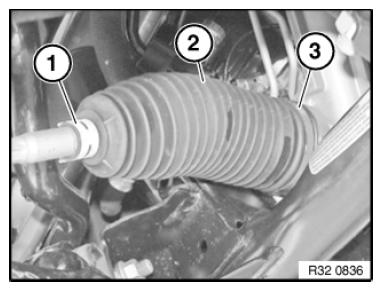

Release band clamp (1) and EAR CLIP (3).
Detach gaiter (2) from track rod.
Installation note:
Clean rack and check surface for damage (e.g. by corrosion).
Clean track rod and apply grease to taper.
NOTE:
This ensures that the gaiter is not rotated when the track rod is rotated.
