32 41... Instructions for removing and installing ear clips

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required

32 1 260

NOTE: The work steps are show on assorted components.
Ear clip must always be replaced.

To remove an ear clip, place special tool 32 1 260 at right angles to ear and cut ear open.

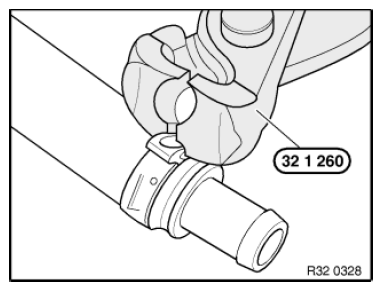

Fig 1: Removing Ear Clip Using Special Tool 32 1 260

G08504793

Courtesy of BMW OF NORTH AMERICA, INC.

The ear clip can be fitted not only axially but also radially after the hook fastener has been opened.

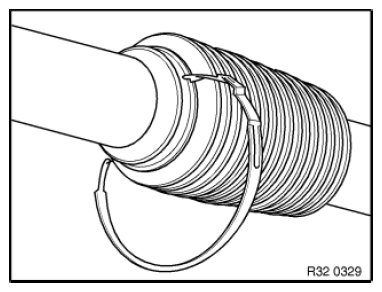

Fig 2: Identifying Ear Clip

G08504794

Courtesy of BMW OF NORTH AMERICA, INC.

Attach hook fastener and press ear together with special tool 32 1 260.

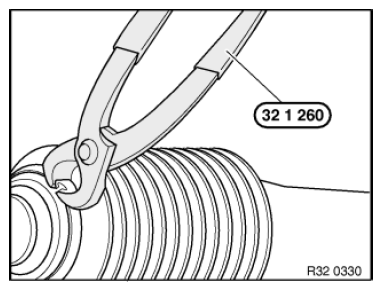

Fig 3: Pressing Ear Together Using Tool 32 1 260

G08504795

Courtesy of BMW OF NORTH AMERICA, INC.

The diagonal cutting pliers of special tool 32 1 260 can be used in areas which are difficult to access.

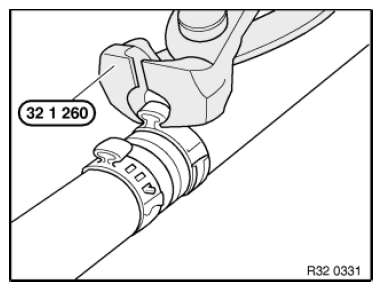

Fig 4: Pressing Ear Clip Together Using Special Tool 32 1 260 (Diagonal Cutting Pliers)

G08504796

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Gap (A) max. 1 mm!

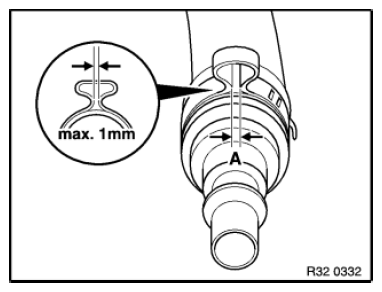

Fig 5: Identifying Ear Clip Gap Dimensions

G08504797

Courtesy of BMW OF NORTH AMERICA, INC.
