51 37 000 Removing and installing complete rear left or right side power window unit

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of injury!
Power window unit has no anti-trapping mechanism.

Necessary preliminary tasks:

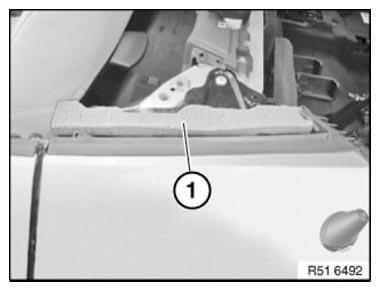

Remove foam material (1).

Fig 1: Identifying Foam Material

Courtesy of BMW OF NORTH AMERICA, INC.

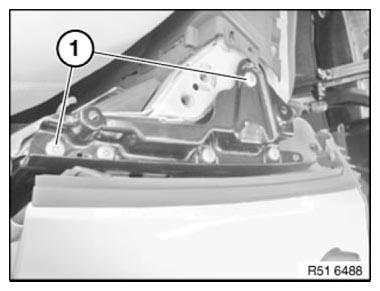

Release screws (1).

Tightening torque 51 37 4AZ .

NOTE: Replace self-locking screws.

Fig 2: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

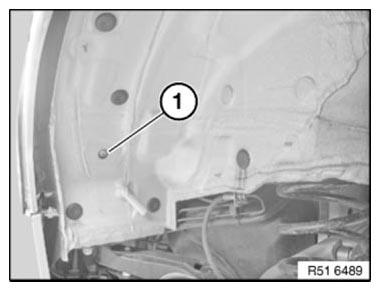

Release bolt (1).

Tightening torque 51 37 5AZ .

Fig 3: Identifying Power Window Unit Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Raise power window unit slightly.

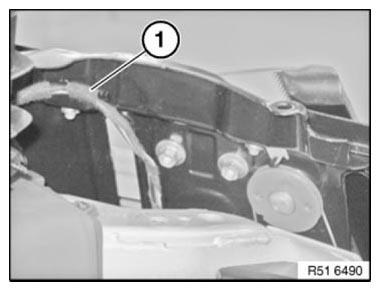

Unclip cable connection (1).

Fig 4: Identifying Power Window Unit Cable Connection

Courtesy of BMW OF NORTH AMERICA, INC.

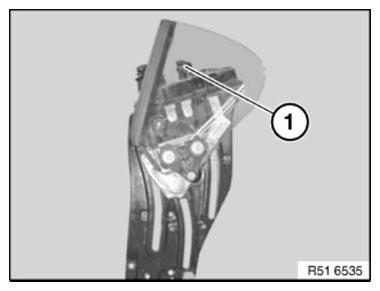

Move power window unit (1) with electric switch in door trim panel to roughly half height and feed out power window in upward direction.

Installation:

Reinstall power window unit (1) in half-opened position in body and move power window unit (1) with electric switch in door trim panel downwards again.

Fig 5: Identifying Power Window Unit

Courtesy of BMW OF NORTH AMERICA, INC.

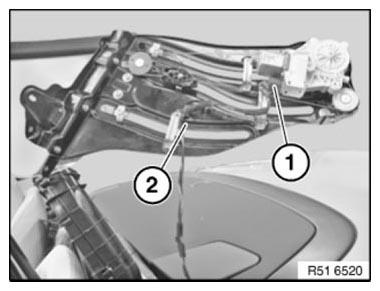

Disconnect electric motor (1) and cable clip (2).

Installation:

Check function.

Adjust REAR SIDE WINDOW .

Fig 6: Identifying Electric Motor And Cable Clip

Courtesy of BMW OF NORTH AMERICA, INC.
