51 37 240 Removing and installing/replacing outer window cavity cover strip for rear side window

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The "INSTRUCTIONS ON FITTING WINDOW GUIDES " serve as the basis for this repair instruction and must be observed without fail.

Necessary preliminary tasks:

Partially open folding roof
If necessary, open side window glass

NOTE: Prior to removing, pay attention to the exact installation position with respect to the adjoining components.

Unclip belt deflector trim (1).

Release outer window cavity cover strip (2) from side panel.

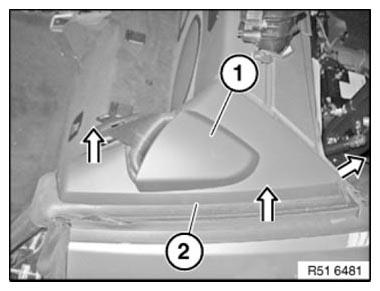

Fig 1: Removing Outer Window Cavity Cover Strip From Side Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure window cavity cover strip (1) is correctly seated.

Window cavity cover strip (1) must not be damaged.

If necessary, moisten window cavity cover strip (1) prior to fitting with APPROVED ANTIFRICTION AGENT .

Secure window cavity cover strip (1) with clip (2) to body (3).

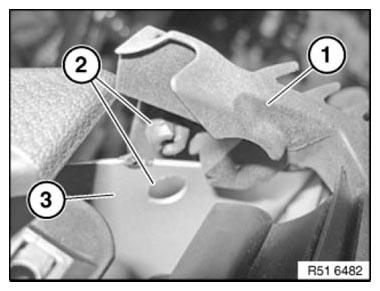

Fig 2: Identifying Body, Window Cavity Cover Strip And Clip

Courtesy of BMW OF NORTH AMERICA, INC.
