51 71 041 Removing and installing/replacing rear left or right wheel arch cover

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks:

Remove REAR WHEEL

Release all nuts (1).

Remove cover (2).

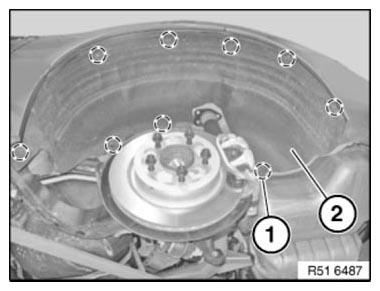

Fig 1: Identifying Wheel Arch Cover And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Carefully lift in wheel arch cover (1) with special tool 00 9 317 .

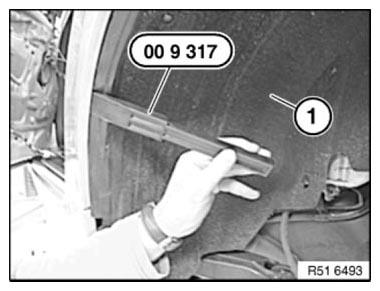

Fig 2: Lifting Wheel Arch Cover Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.
