51 11 141 Removing and installing/replacing bumper panel at bottom front

Necessary preliminary tasks:

Version with Park Distance Control:

Disconnect plug connection (1).

Remove cable from holders (2).

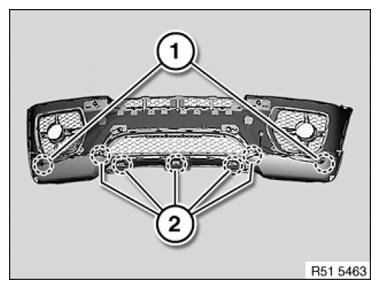

Fig 1: Identifying Plug Connections And Holders

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operation is described on the left side; proceed in the same way for the right side.

Release all latch mechanisms (1) on left and right.

Remove the bottom bumper panel (2).

Installation note:

Latch mechanisms (1) must not be damaged.

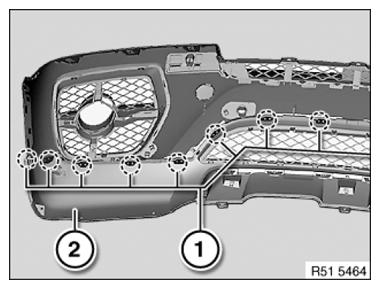

Fig 2: Identifying Latch Mechanisms And Bottom Bumper Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

With Park Distance Control (PDC):
