51 11 156 Removing and installing front bumper panel

Necessary preliminary work:

Not for M bumper panel:

Graphics are only an example (The graphics used are from X6 3, 0 i).

Single operations are described for the left side, the right side is the same as the left side.

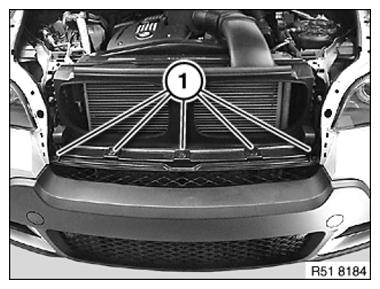

Release screws (1).

Fig 1: Identifying Bumper Panel Mounting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

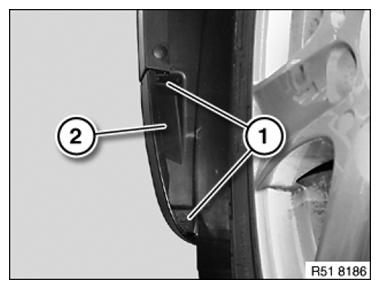

Release screws (1) on wheel arch trim (2).

For M bumper panel:

Release additional screw (1) at bottom of wheel arch cover (2).

Installation note:

Make sure wheel arch cover (2) is in correct position.

Fig 2: Identifying Wheel Arch Cover And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

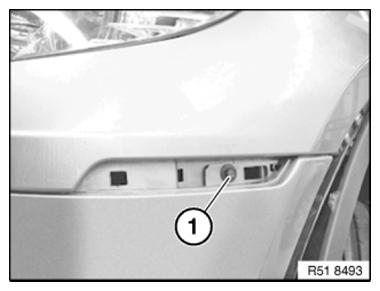

Release screws (1).

Fig 3: Identifying Front Bumper Trim Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

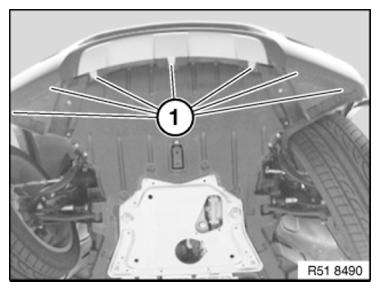

Release screws (1).

For M bumper panel:

Release 3 screws (1) each on left and right.

Fig 4: Identifying Bumper Panel Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

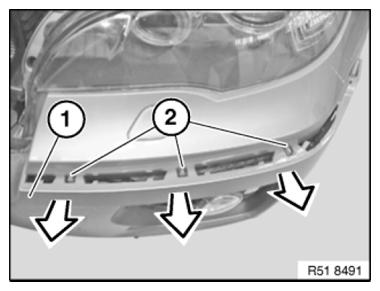

Unclip bumper panel (1) from latch mechanism (2) towards the front with the aid of a 2nd person.

IMPORTANT: Do not damage bumper panel when pulling off.

Fig 5: Removing Bumper Panel From Latch Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

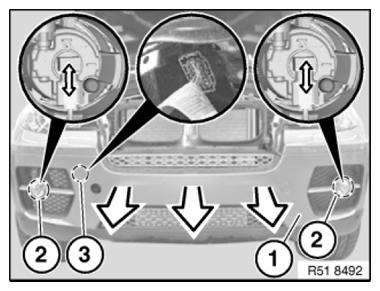

Pull bumper panel slightly towards the front with aid of a 2nd person.

Disconnect plug connections for fog light in area (2) and for Park Distance Control in area (3).

If necessary, disconnect plug connection at left and right of bumper camera.

Remove bumper panel (1) towards the front with the aid of a 2nd person.

Fig 6: Removing Bumper Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Height adjustment, refer to 41 00... BODY GAP DIMENSIONS .
