51 11 180 Removing and installing/replacing grille in bumper trim (bottom middle)

Necessary preliminary work:

• Remove FRONT BUMPER TRIM .

Release latch mechanisms along line (1) and remove grille (2).

Installation note:

Latch mechanisms must not be damaged

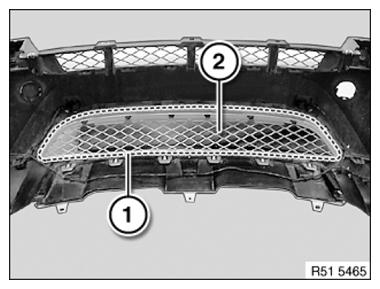

Fig 1: Identifying Grille And Latch Mechanisms Line

Courtesy of BMW OF NORTH AMERICA, INC.
