51 44 002 Removing and installing/replacing roofliner (without panorama glass roof)

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks:

Version with dividing net mounts:

Remove all dividing net mounts (3).

Open protective cap (1).

Release screw (2) and remove dividing net mounts (3).

Installation:

Observe position indications on reverse side of dividing net mounts (1).

Fig 1: Identifying Protective Cap, Screw And Dividing Net Mounts

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out rubber grommet (1) from inside mirror wiring harness.

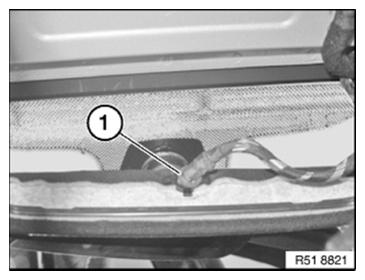

Fig 2: Identifying Rubber Grommet

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown removed here for purposes of clarity.

Unclip roofliner (2) at rear (1).

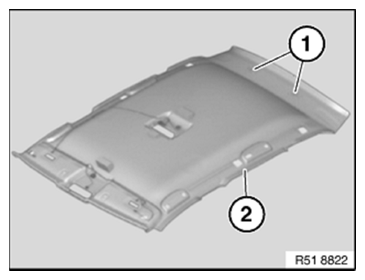

Fig 3: Locating Roofliner Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Fold down rear seat backrests, then move backrest of front seats to maximum rear position.

Detach mucket from rear lid and all doors in roofliner area.

IMPORTANT: Do not jolt roofliner edges during removal.
The following tasks must be carried out with a second person assisting:

Fold away roofliner (2) towards bottom right and remove through rear lid opening.

Installation:

Following parts of headliner (3) must not be damaged or missing:

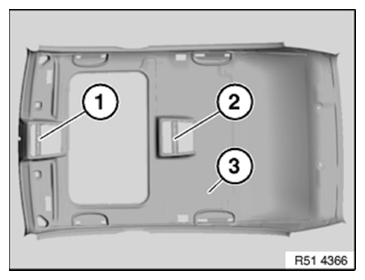

Fig 4: Identifying Roofliner, Headliner And Mounts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation sequence:

Replacement:

Version with dividing net mounts only:

Cut out premarked openings (1) on left and right with a scalpel.

IMPORTANT: Ensure a clean cut so that the headliner material is not damaged on the inside.

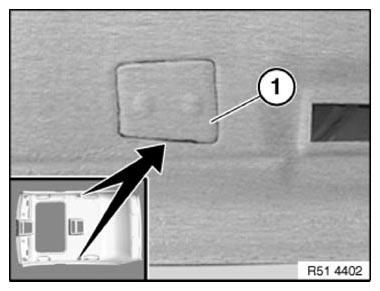

Fig 5: Cutting Out Premarked Openings

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustration shown as an example.

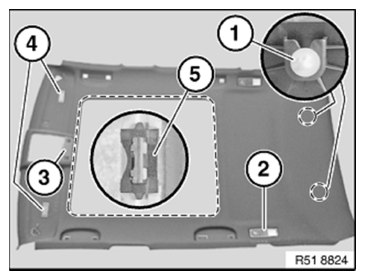

Fig 6: Identifying Interior Light, Retaining Clips, Make- Up Mirror Lights And Modules

Courtesy of BMW OF NORTH AMERICA, INC.
