51 16... Removing and installing/replacing holder, rear left/right grab handle

WARNING: Follow SAFETY INSTRUCTIONS for working on vehicles with airbag systems (risk of injury).

IMPORTANT: Risk of damage! Do not use sharp tools in the area of the head airbag.

Necessary preliminary tasks:

Remove headlining. See REMOVING ROOFLINER (WITHOUT PANORAMA GLASS ROOF) or REMOVING ROOFLINER (WITH PANORAMA GLASS ROOF) .

Only for complete dismantling:

Remove BRACKET FOR FOLDING PACK HEAD AIRBAG

NOTE: Illustration shows holder with front fixture for load area net.

Release screws (1).

Tightening torque 51 16 19AZ .

If necessary, detach retaining tabs of wiring harness.

IMPORTANT: If holder for grab handle, rear, (2) is only lowered, secure holder for grab handle to prevent "sag" in order to ensure that folding pack head airbag is not damaged.

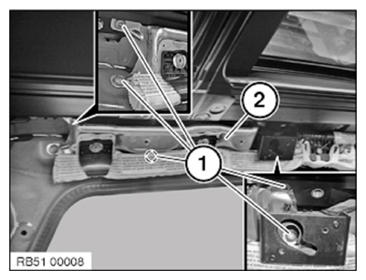

Fig 1: Identifying Rear Grab Handle And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Only with optional equipment load area net:

Correctly introduce latching tab at front fixture for separating net (1) into recess in body.

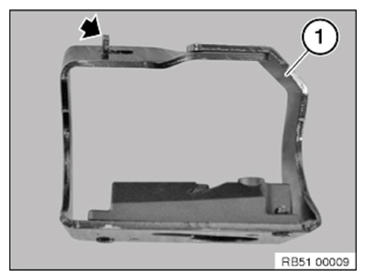

Fig 2: Locating Latching Tab

Courtesy of BMW OF NORTH AMERICA, INC.
