18 00 020 Removing and installing complete exhaust system (N54)

Special tools required:

WARNING:

Scalding hazard. Only perform these tasks after exhaust system has cooled down.

Risk of injury. Removal of the exhaust system must be carried out with the assistance of a second person.

Support exhaust system with special tool 31 2 220.

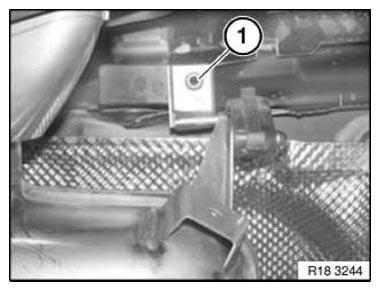

Fig 1: Supporting Exhaust System Using Special Tool (31 2 220)

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Replace self-locking nut.

Tightening torque 18 31 1AZ .

Replace seals.

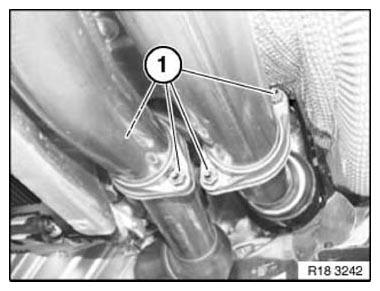

Fig 2: Identifying Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Tightening torque 18 20 3AZ .

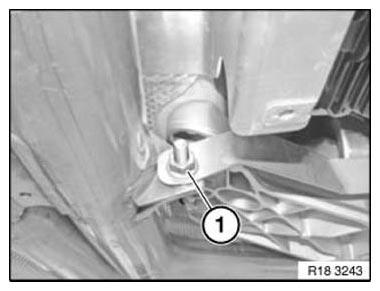

Fig 3: Identifying Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Picture shows the left side, the procedure for the right side is identical.

Slacken nut (1).

Tightening torque 18 31 4AZ .

Fig 4: Identifying Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 18 31 6AZ .

Only when independent heating is fitted: release screw (2) on metering pump.

Tightening torque 18 31 7AZ .

Release screws (3) on underbody panels.

Remove reinforcement plate (4).

Fig 5: Identifying Reinforcement Plate And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Picture shows the left side, the procedure for the right side is identical.

Slacken nut (1).

Tightening torque 18 31 5AZ .

Fig 6: Identifying Left Side Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Tightening torque 18 31 5AZ .

Lower and remove exhaust system with assistance of a second person.

Fig 7: Identifying Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check rubber mount for damage.

If necessary, replace damaged rubber mounts.

Check exhaust system for leaks.
