51 23 101 Removing and installing/replacing left active engine compartment lid lock

Necessary preliminary tasks:

Remove all screws (1) at join (2) from engine compartment lid door lock to center of vehicle; slacken remaining screws (1).

Tightening torque 51 61 6AZ .

NOTE: Connection (2) does not have to be removed.

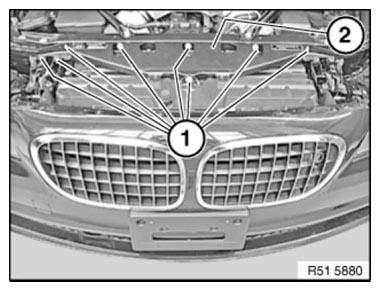

Fig 1: Identifying Engine Compartment Lid Lock Screws And Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) on engine compartment lid lock (1).

Tightening torque 51 23 2AZ .

Fig 2: Identifying Engine Compartment Lid Lock And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown removed here for purposes of clarity.

Disengage, unlock and disconnect plug connections (1) at lock carrier.

Disconnect Bowden cable (2).

Feed engine compartment lock (3) towards front/top.

Fig 3: Identifying Plug Connections, Bowden Cable And Engine Compartment Lock

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Replace sensors in bumper, if damaged:

Version as optical fibre:
