65 76 605 Removing and installing/replacing middle pedestrian protection sensor

Necessary preliminary work:

• Disconnect BATTERY CABLE
• Remove BASEPLATE FOR NUMBER PLATE
• Remove ORNAMENTAL GRILLE IN BUMPER TRIM .

Release screws (1).

Tightening torque 65 76 1AZ .

Feed out sensor (2).

Fig 1: Identifying Screws And Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Remove sensor (2).

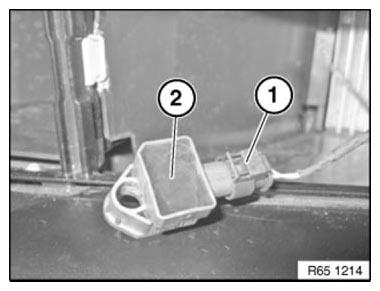

Fig 2: Identifying Plug Connection And Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
