65 76 610 Removing and installing/replacing right pedestrian protection sensor

WARNING:

Observe SAFETY INSTRUCTIONS for handling gas generators.

Incorrect handling can activate pedestrian protection and cause injury.

Necessary preliminary work:

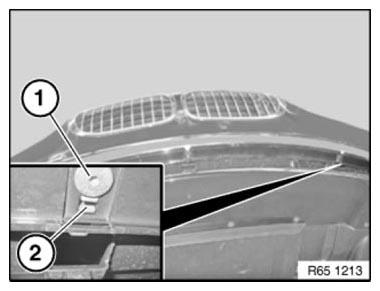

Release screws (1).

Tightening torque 65 76 1AZ .

Feed out sensor (2).

Fig 1: Identifying Screws And Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

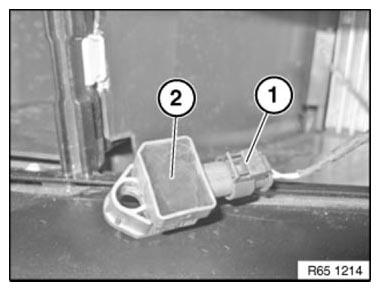

Unfasten plug connection (1) and disconnect.

Remove sensor (2).

Fig 2: Identifying Plug Connection And Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
