22 11 100 Replacing right engine support arm (N54)

Necessary preliminary tasks

• Remove right engine mount  . See 22 11 001 REPLACING RIGHT ENGINE MOUNT (N54) AWD  or 22 11 001 REPLACING RIGHT ENGINE MOUNT (N54) .
• Remove REINFORCEMENT PLATE (AWD)
• Remove catalytic converters  . See 18 32 050 REMOVING AND INSTALLING/REPLACE CATALYTIC CONVERTER FOR CYLINDERS 1-3 (N54, N54T) or 18 32 060 REMOVING AND INSTALLING/REPLACE CATALYTIC CONVERTER FOR CYLINDERS 4-6 (N54, N54T) .

Release screws.

Remove engine support arm from engine.

Tightening torque: 22 11 3AZ

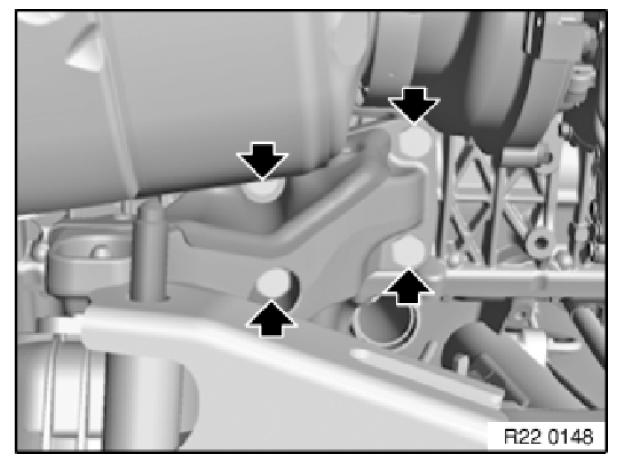

Fig 1: Locating Screws Of Engine Support Arm

Courtesy of BMW OF NORTH AMERICA, INC.
