22 11 001 Replacing right engine mount (N54) AWD

Necessary preliminary tasks

• Secure engine in INSTALLATION POSITION .
• Remove underbody protection. See 51 47 490 REMOVING AND INSTALLING/REPLACING FRONT UNDERBODY PROTECTION (AWD) .
• Remove REINFORCEMENT PLATE .

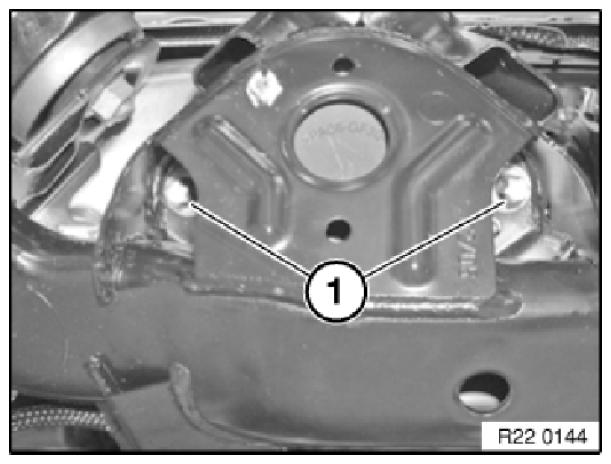

Release screws (1) and remove engine mount.

Tightening torque: 22 11 1AZ .

Installation:

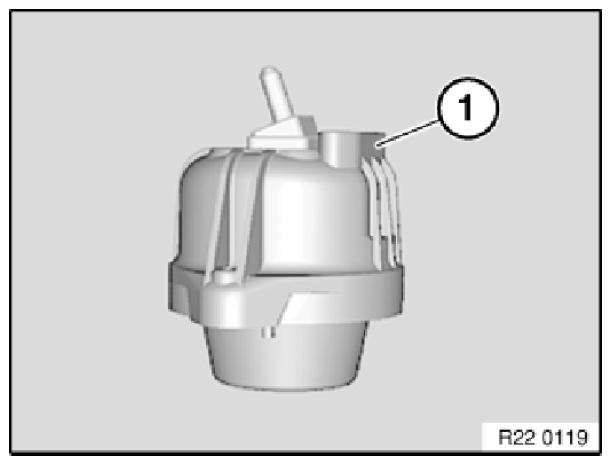

Rubber section (1) of engine mount must point to middle of vehicle.

Engine mount designations:

Right engine mount

• With heat cap.

Illustration similar
