31 10 010 Removing and installing/replacing reinforcement plate (AWD)
IMPORTANT:
Observe SAFETY INSTRUCTIONS
for raising the vehicle
Driving without reinforcement plate is not permitted!
Driving without reinforcement plate is not permitted!

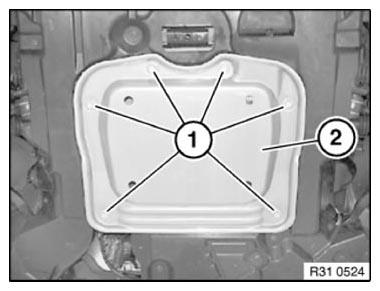

Release screws (1).
Remove reinforcement plate (2).
Installation:
Replace screws.
Tightening torque 31 10 3AZ .
