51 47 490 Removing And Installing/Replacing Front Underbody Protection (AWD)

NOTE: Illustration created using 330xi as an example. There may be differences in detail in the case of other vehicle models.

Remove screws (1 to 4).

Pull underbody protection (5) forward under bumper trim (6).

Installation

Center underbody protection (5) and tighten down screws (1 to 4).

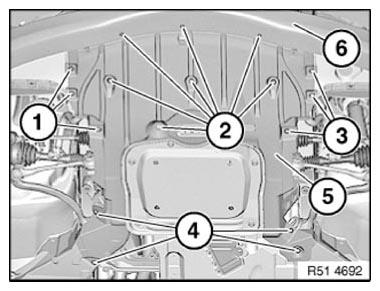

Fig 1: Center Underbody Protection With Screws

Courtesy of BMW OF NORTH AMERICA, INC.
