31 11 506 Lowering/raising front axle support (universal lifter)

Special tools required:

WARNING: Danger of injury!
Failure to comply with the following instructions may result in the vehicle slipping off the lifting platform and critically injuring other persons.
When supporting components, make sure that:

the vehicle can no longer be raised or lowered
the vehicle does not lift off the locating plates on the vehicle hoist.

IMPORTANT: Before lowering/removing front axle support:
Observe SAFETY INFORMATION for raising the vehicle
In order to avoid damage to vehicle hoist, perform weight compensation on vehicle.
Load spring strut domes with sand bags.

WARNING: Secure engine in installation position with special tool to prevent it from falling down.

IMPORTANT: N47, N57: Risk of short circuit on starter!

Necessary preliminary work

Secure engine in installation position.
Remove FRONT ASSEMBLY UNDERSIDE PROTECTION .
If necessary, remove radiator seal.
If necessary, remove steering box cover on left and right.
E82/E88/E92/E93 from 03/12: RELEASE FRONT left and right wheel arch cover at bottom and press to one side
Remove E90, E91, E92: STIFFENING STRUT .
Remove STEERING SHAFT FROM STEERING GEAR .
If necessary, disconnect PLUG CONNECTION TO RIDE HEIGHT SENSOR .
If necessary, disconnect vacuum line from electric changeover valve to engine mounts at T-piece.

Remove pedestrian protection (only for E82/E88/E92/E93 from 03/12):

Slacken screw (1) on front pedestrian protection.

Release screws (2) from deformation element and adapter.

Tightening torque 51 11 7AZ/8AZ

Fig 1: Identifying Screws On Front Pedestrian Protection, Deformation Element And Adapter

Courtesy of BMW OF NORTH AMERICA, INC.

Press deformation element (1) towards the bottom and remove adapter (2) towards the top.

Fig 2: Pressing Deformation Element Towards Bottom

Courtesy of BMW OF NORTH AMERICA, INC.

Version with Electronic Power Steering (EPS):

Cut open cable tie (1) for connecting line on front axle support.

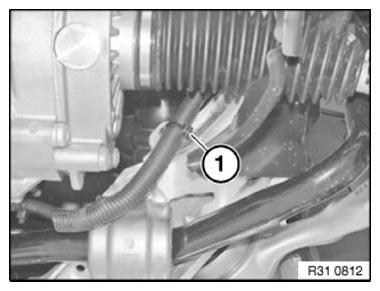

Fig 3: Identifying Cable Tie

Courtesy of BMW OF NORTH AMERICA, INC.

Engage special tool 31 5 251 with a 2nd person helping completely on workshop jack 00 2 030 .

Insert special tools 31 5 253 in telescopic supports of a profile rail pair.

Insert special tools 31 5 256 in telescopic supports of other profile rail pair.

NOTE: In a profile rail pair, two profile rails are connected to one another by gearing.

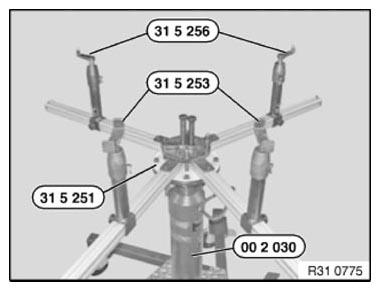

Fig 4: Inserting Special Tools (31 5 253) In Telescopic Supports Of Profile Rail Pair

Courtesy of BMW OF NORTH AMERICA, INC.

The jacking points on the left side are shown.

Align special tools 31 5 253 and 31 5 256 to front axle support.

Support front axle support by operating workshop jack 00 2 030 .

IMPORTANT: The center of gravity of the front axle must lie in the middle above the workshop jack.

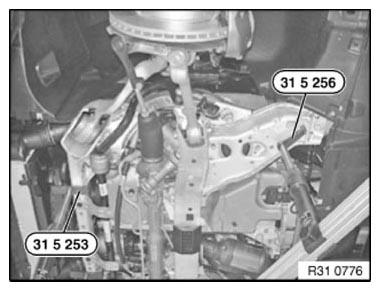

Fig 5: Identifying Special Tools (31 5 253 And 31 5 256) On Front Axle Support

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Pay attention to hydraulic steering hoses and lines when lowering and raising. Hoses/lines must not be kinked/tensioned/bent!

Release bolts (1-3).

Tightening torque 31 10 1AZ

Lower front axle support a maximum of 10 cm; if necessary, disconnect radiator return hose/coolant pipe from front axle support.

Installation note:

Check thread for damage; if necessary, repair with HELICOIL THREAD INSERT .

Make sure screws are installed in correct positions.

Bolt (1) M12x90
Screw (2) M12x145
Screw (3) M12x53

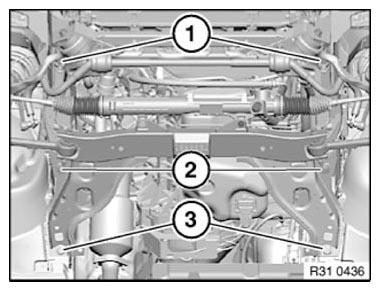

Fig 6: Identifying Front Axle Bolts And Screws
Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down first screws (1) and then screws (2, 3).
