31 11 004 Removing and installing/replacing reinforcement strut
IMPORTANT:
Observe SAFETY INFORMATIONS
for raising the vehicle
Driving without the reinforcement bar is not permitted!
Driving without the reinforcement bar is not permitted!
Necessary preliminary tasks
- Remove FRONT ASSEMBLY UNDERSIDE PROTECTION .
- Remove THE LEFT AND RIGHT REINFORCEMENT COVERS .
Release UNDERBODY PANELLING ON LEFT AND RIGHT , partially in the area of the reinforcement strut.

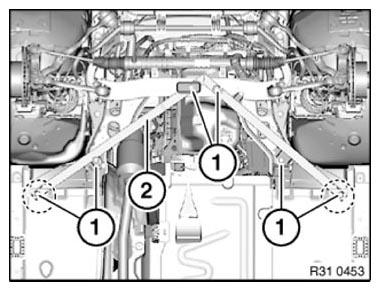

Release screws (1).
Tightening torque 31 10 2AZ .
Remove reinforcement bar (2).
Installation note:
Replace screws and speed nuts.
