17 11 054 Removing and installing right module carrier (N52K, N54)
WARNING: This page is about a different variant/trim than selected.
WARNING:
Danger of scalding!
Only perform this work after engine has cooled down.
Only perform this work after engine has cooled down.
WARNING:
Risk of injury!
Refrigerant circuit is under high pressure!
Follow safety instructions for handling refrigerant See 6450... INSTRUCTIONS FOR HANDLING REFRIGERANT R 134A or 6450... SAFETY INSTRUCTIONS FOR HANDLING REFRIGERANT R134A .
Avoid contact with refrigerant and refrigerant oil Follow safety instructions for HANDLING REFRIGERANT OIL .
Refrigerant circuit is under high pressure!
Follow safety instructions for handling refrigerant See 6450... INSTRUCTIONS FOR HANDLING REFRIGERANT R 134A or 6450... SAFETY INSTRUCTIONS FOR HANDLING REFRIGERANT R134A .
Avoid contact with refrigerant and refrigerant oil Follow safety instructions for HANDLING REFRIGERANT OIL .
IMPORTANT:
Risk of damage!
Restart engine only when A/C system has been correctly filled.
Follow INSTRUCTIONS for opening and replacing parts in refrigerant circuit.
Restart engine only when A/C system has been correctly filled.
Follow INSTRUCTIONS for opening and replacing parts in refrigerant circuit.
If A/C system is opened for more than 24 hours: Replace DESICCANT INSERT for A/C system.
Necessary preliminary tasks:
- Remove left MODULE CARRIER
- Drain off AIR CONDITIONING SYSTEM

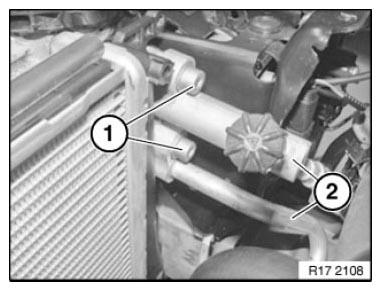

Release screws (1).
Tightening torque 64 53 6AZ .
Detach A/C lines (2) from A/C condenser.
Installation:
Replace all sealing rings and moisten with refrigerant oil.

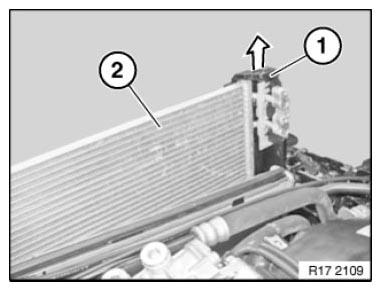

Lift out right module carrier (1) together with A/C condenser (2).

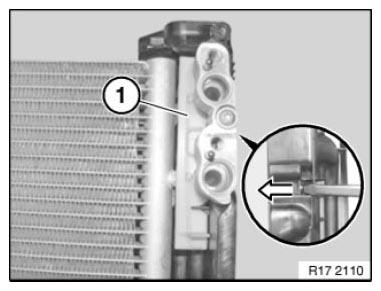

Release A/C condenser from module carrier. In so doing, release lock (1) on side of module carrier in direction of arrow.
Installation:

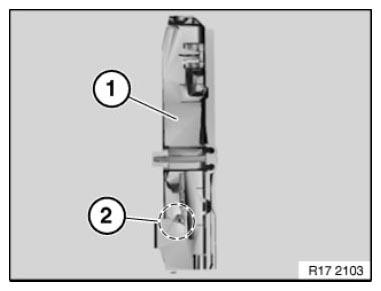

When reinstalling the radiator and module carrier (1), ensure without fail that the radiator is correctly seated in mounting (2).
Add final details to vehicle.
Evacuate and fill A/C SYSTEM .
