17 11 052 Removing and installing left module carrier (N52K, N54)

WARNING: This page is about a different variant/trim than selected.

WARNING: Danger of scalding!
Only perform this work after engine has cooled down.

Necessary preliminary tasks:

Release bolts (1) on radiator on left and right.

Tightening torque 17 10 2AZ .

Do not unfasten or detach coolant hose (2).

Do not drain coolant.

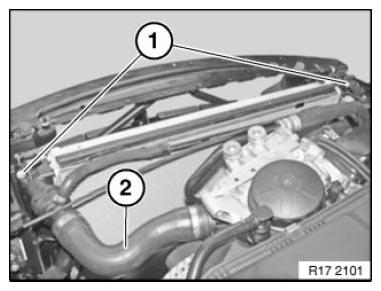

Fig 1: Identifying Radiator Bolts And Coolant Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Slide radiator and condenser slightly towards rear.

Feed out left module carrier (1) and remove towards top.

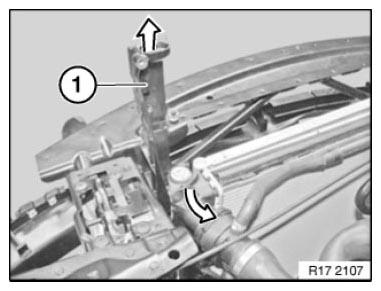

Fig 2: Removing Left Module Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

When reinstalling module carrier (1), ensure without fail that the radiator is correctly seated in mounting (2).

Fig 3: Identifying Module Carrier And Radiator Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

Add final details to vehicle.
