Section 149 (Collision - Body Dimensions (E90))
>>
Body Dimensions
>>
41 00... Body Gap Dimensions
41 00... Body Gap Dimensions
WARNING:
This page is about a different variant/trim than selected.
Dimensions in mm

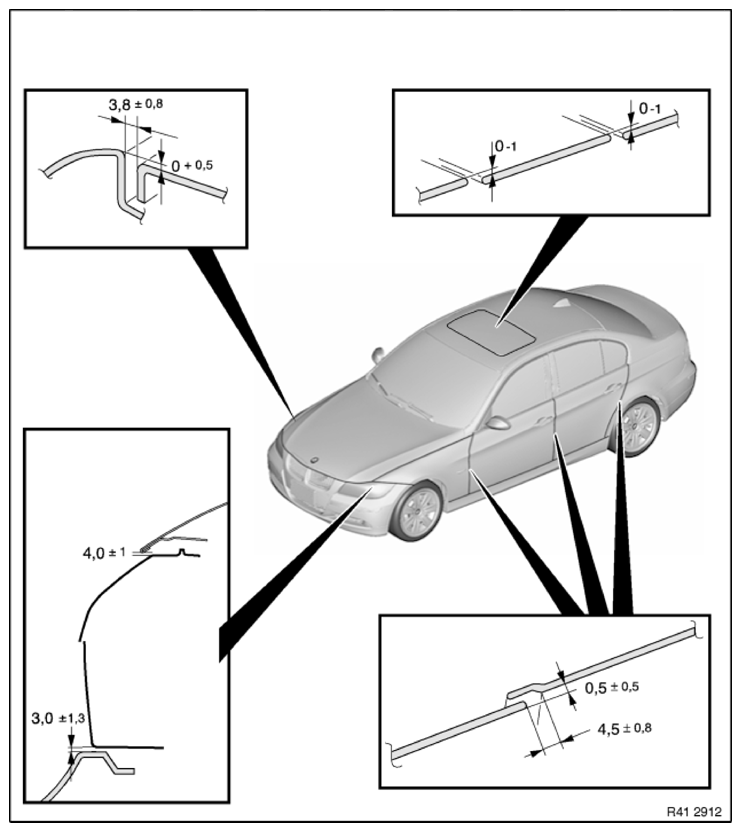

Fig 1: Front View Body Gap Dimensions And Measurement Points
Courtesy of BMW OF NORTH AMERICA, INC.

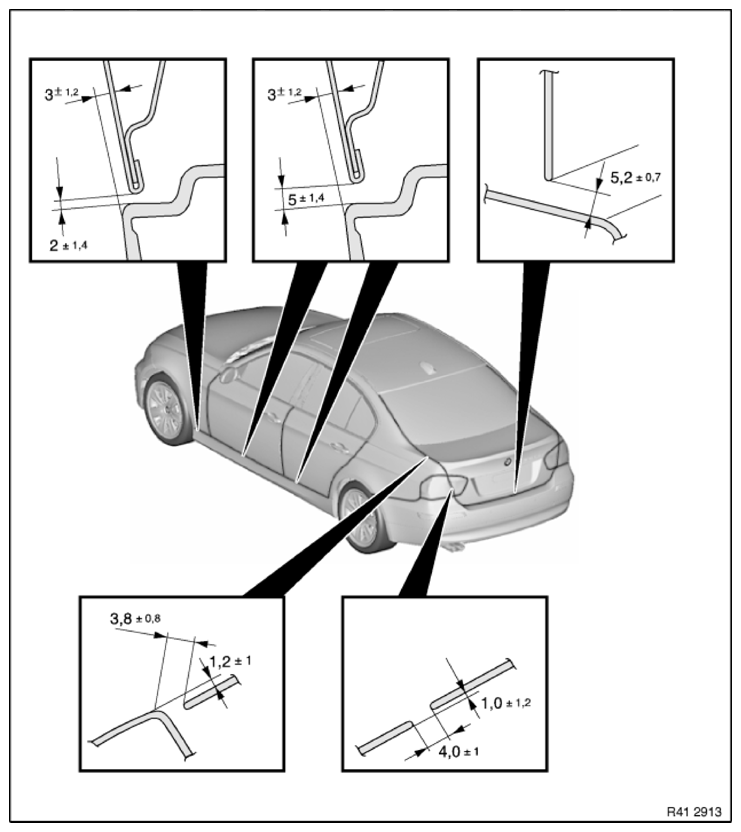

Fig 2: Rear View Body Gap Dimensions And Measurement Points
Courtesy of BMW OF NORTH AMERICA, INC.
