41 33 040 Front Wall Replacement

WARNING: This page is about a different variant/trim than selected.

Read contents of BODY, GENERAL .

Necessary preliminary tasks:

IMPORTANT: Car must not be driven without the front wall.
Driving without the front wall may damage the body structure.

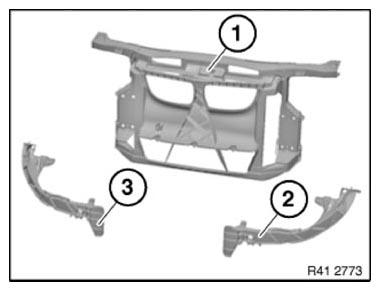

Following new body parts are required:

(1) Front panel
(2) Headlight holder, left
(3) Headlight holder, right

Fig 1: Identifying Front Panel And Headlight Holder
Courtesy of BMW OF NORTH AMERICA, INC.

Carry over the following work steps symmetrically to the other side of the car.

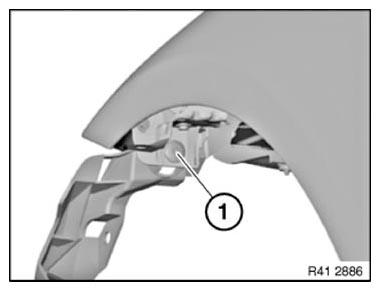

NOTE: View, front side panel, in direction of travel

Release screw (1).

Tightening torque 41 33 3AZ .

Fig 2: Identifying Screw Of Front Side Panel

Courtesy of BMW OF NORTH AMERICA, INC.

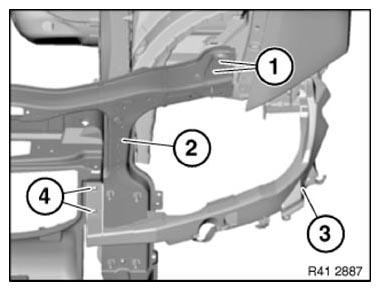

Release screws (1).

Tightening torque 41 33 1AZ .

Remove front panel (2) together with headlight holder (3).

Replacement:

Release screws (4) and remove headlight holder.

Tightening torque 41 33 2AZ .

Fig 3: Identifying Front Panel, Screws And Headlight Holder

Courtesy of BMW OF NORTH AMERICA, INC.
