41 61 014 Adjusting Engine Compartment Lid

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: E92, E93, E82, E88 only:
These instructions only apply to vehicles without active pedestrian protection!
Observe separate procedure for vehicles with active pedestrian protection.

Read contents of BODY, GENERAL .

The BODY GAP DIMENSIONS specified serve as the basis for the adjusting procedure.

Make unpainted surfaces visible by also moving the hinges. Touch these up in the appropriate colour.

NOTE: Carry over schematic diagram to the relevant vehicle type.

Loosen screws (1) and (2) on left and right hinges.

Engine compartment lid lid must be able to be moved.

NOTE: If the adjustment range is not sufficient, release retaining screws of engine compartment lid hinge on body and move hinge.

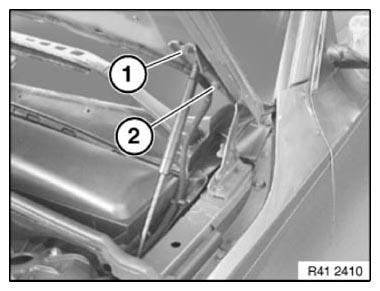

Fig 1: Identifying Screws Of Hinges

Courtesy of BMW OF NORTH AMERICA, INC.

Locks and retaining hook must engage correctly.

Adjust engine compartment lid.

NOTE: HEIGHT ADJUSTMENT of engine compartment lid to side wall by means of stop pads.

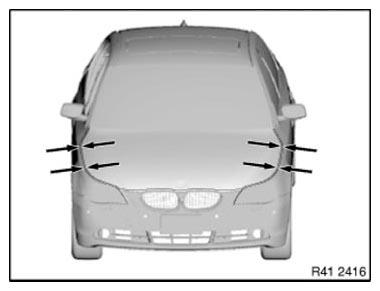

Fig 2: Adjusting Engine Compartment Lid

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Height adjustment of engine compartment lid to front wall:
Release screw (1) and remove cover (2).
Height adjustment by turning at closing hooks (3).

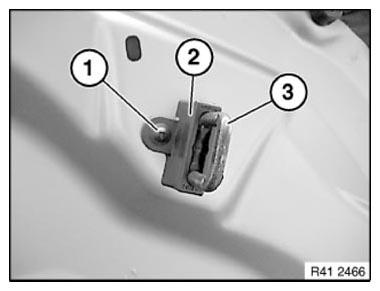

Fig 3: Identifying Cover, Hooks And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten all screw connections again.

Tightening torque 41 61 1AZ .

IMPORTANT: Check function of retaining hook.
