41 61 000 Engine Compartment Lid Removal And Installation
WARNING: This page is about a different variant/trim than selected.
WARNING:
Danger of injury!
Support engine compartment lid in fully opened position with suitable apparatus.
Removal of the engine compartment lid must be carried out with the assistance of a second person.
Support engine compartment lid in fully opened position with suitable apparatus.
Removal of the engine compartment lid must be carried out with the assistance of a second person.
IMPORTANT:
E92, E93, E82, E88 only:
These instructions only apply to vehicles without active pedestrian protection!
Observe separate procedure for vehicles with active pedestrian protection!
These instructions only apply to vehicles without active pedestrian protection!
Observe separate procedure for vehicles with active pedestrian protection!
Read contents of BODY, GENERAL .
Necessary preliminary tasks:
- Disconnect all cable plug connections
IMPORTANT:
During the following operation, secure engine compartment lid against closing.

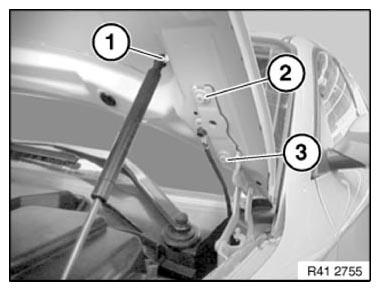

Detach gas-filled shock absorber on engine compartment lid (1).
Slacken screws (2)
Release screws (3).
Tightening torque 41 61 1AZ .
NOTE:
This work step must be carried out with a second person assisting.
Remove engine compartment lid.
Installation note:
Install engine compartment lid at screw locations to on hinge. This dispenses with the need for adjustment after installation.
If this is not possible, ADJUST ENGINE COMPARTMENT LID .
