31 21 180 Replacing bearing for front wheel (AWD)

WARNING: This page is about a different variant/trim than selected.

Special tools required:

IMPORTANT: Bearing cannot be dismantled.
Do not wash out bearing.

Remove FRONT WHEEL .

IMPORTANT: Expand turning lock sufficiently to avoid damaging thread when releasing collar nut.

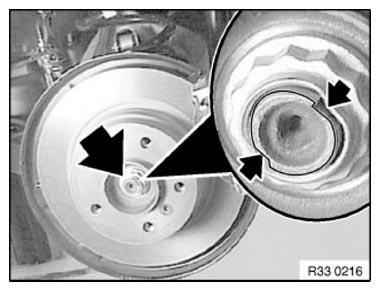

Release collar nut; to do so, press brake pedal to floor.

Fig 1: Locating Collar Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Remove FRONT BRAKE DISK .

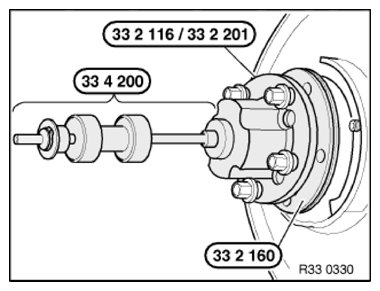

Force drive flange with special tools 33 2 116 /33 2 201, 33 2 160 , 33 4 200 and 5 wheel bolts out of wheel bearing.

NOTE: Rounded inside edge of special tool 33 2 160 must point to drive flange.

Detach INNER WHEEL BEARING RACE FROM DRIVE FLANGE .

Fig 2: Removing Front Brake Disk Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Remove SWIVEL BEARING and clamp with aluminium clamping jaws in vice.

IMPORTANT: The bearing was destroyed when the wheel hub was removed and must not be reused!

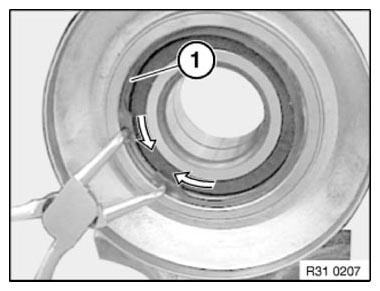

Lift out retaining ring (1).

Fig 3: Removing Retaining Ring

Courtesy of BMW OF NORTH AMERICA, INC.

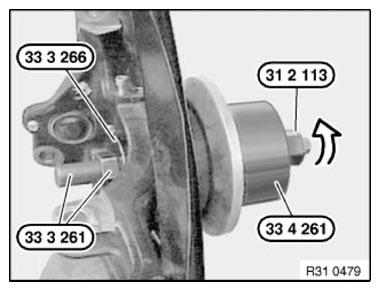

Pull out bearing with special tools 31 2 113 , 33 4 261 , 33 3 266 and 33 3 261 .

NOTE: The bearing can be forced out of the swivel bearing on a press.

Check dust sleeve, replace if necessary.

Fig 4: Removing Bearing Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Keep press-fit areas clean and free of oil and grease.

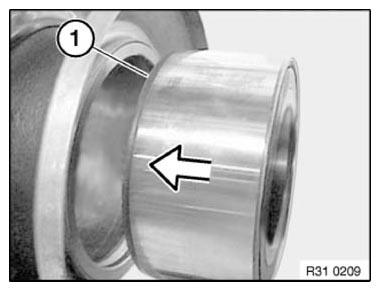

Wider chamfer (1) of bearing must point to swivel bearing!

Clean new bearing on press-fit area and bearing seat in swivel bearing.

Fig 5: Installing Bearing Wider Chamfer To Swivel Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

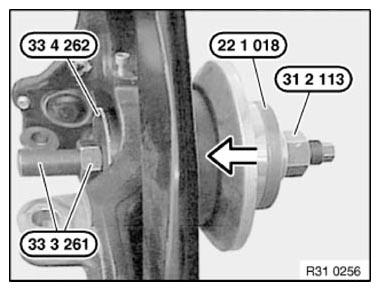

Align bearing by way of wider chamfer to swivel bearing and draw in up to stop with special tools 31 2 113 , 22 1 018 , 33 4 262 and 33 3 261 .

NOTE: The bearing can be forced out of the swivel bearing on a press.

Fig 6: Aligning Wider Chamfer Bearing To Swivel Bearing Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Install new circlip (1).

NOTE: Make sure circlip (1) is correctly seated.

Fig 7: Identifying Circlip

Courtesy of BMW OF NORTH AMERICA, INC.

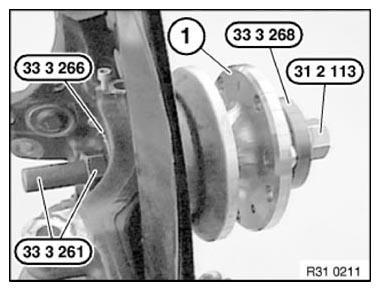

Draw in wheel hub (1) up to stop with special tools 31 2 113 , 33 3 268 , 33 3 266 and 33 3 261 .

Fig 8: Installing Wheel Hub Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Install SWIVEL BEARING .

Draw OUTPUT SHAFT INTO WHEEL HUB .

Install FRONT BRAKE DISK .

Install front brake calliper.

Replace collar nut, oil collar nut/wheel bearing contact surface only and tighten down.

No oil permitted on thread of shaft journal or collar nut.

Tightening torque 31 21 2AZ .

Secure collar nut by positive peening on flat areas of output shaft.

Install FRONT WHEEL .

Fig 9: Locating Collar Nut

Courtesy of BMW OF NORTH AMERICA, INC.
