31 60... Pressing output shaft out of drive flange (wheel hub) and drawing in

WARNING: This page is about a different variant/trim than selected.

Special tools required:

WARNING: Risk of injury!
It is not permitted to use the impact screwdriver to press out and draw in the output shaft.

IMPORTANT: Risk of damage!
To avoid damaging the output shaft and adjoining parts, it is essential during the pressing-out process to repeatedly check and if necessary correct the position of the output shaft.

E53 and M3 only:

IMPORTANT: To avoid damaging the dust boot, use special tool 33 2 160 to press out and draw in the output shaft after removing the brake disc.

NOTE: Rounded inside edge of special tool 33 2 160 must point to drive flange.

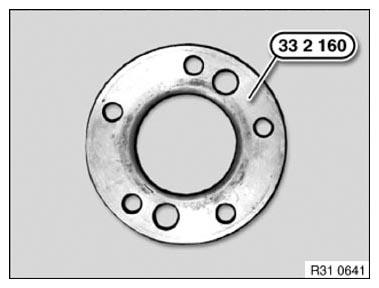

Fig 1: Identifying Special Tool (33-2-160)

Courtesy of BMW OF NORTH AMERICA, INC.

Special tool 33 2 200

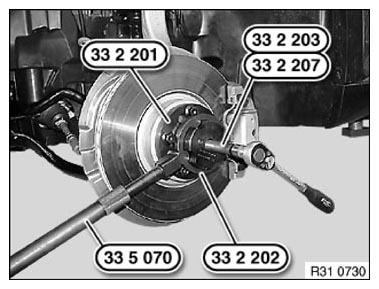

Screw on special tools 33 2 203 , 33 2 207 and 33 2 201 with all wheel bolts to drive flange.

Press output shaft out of drive flange; in so doing, grip basic body 33 2 201 with special tools 33 2 202 and 33 5 070 .

Fig 2: Removing Output Shaft Of Drive Flange Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: No oil permitted on shaft journal thread!

Lightly oil spline teeth of output shaft.

Insert output shaft into drive flange.

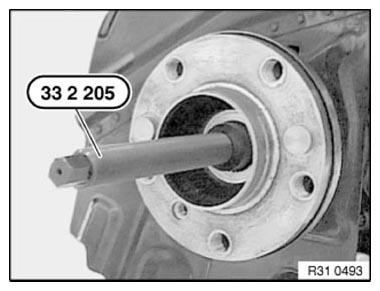

Screw special tool 33 2 205 onto output shaft.

Fig 3: Installing Special Tool Onto Output Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Mount special tool 33 2 201 with three wheel bolts to drive flange.

Draw in output shaft with special tool 33 2 208 up to stop; in so doing, grip basic body 33 2 201 with special tools 33 2 202 and 33 5 070 .

Fig 4: Installing Output Shaft Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Special tool 33 2 110

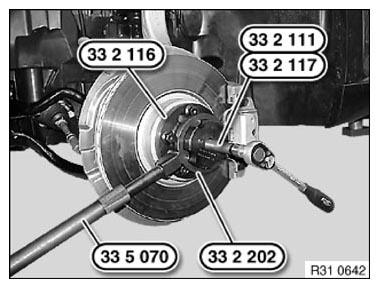

Screw on special tools 33 2 111 , 33 2 117 and 33 2 116 with all wheel bolts to drive flange.

Press output shaft out of drive flange; in so doing, grip basic body 33 2 116 with special tools 33 2 202 and 33 5 070 .

Fig 5: Removing Output Shaft Of Drive Flange Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: No oil permitted on shaft journal thread!

Lightly oil spline teeth of output shaft.

Insert output shaft into drive flange.

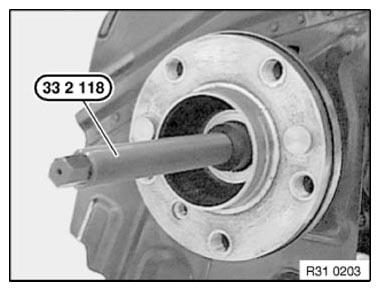

Screw special tool 33 2 118 onto output shaft.

Fig 6: Installing Special Tool Onto Output Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Mount special tool 33 2 116 with three wheel bolts to drive flange.

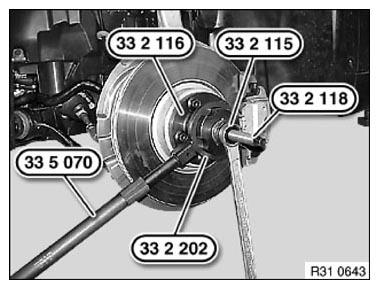

Draw in output shaft with special tool 33 2 115 up to stop; in so doing, grip basic body 33 2 116 with special tools 33 2 202 and 33 5 070 .

Fig 7: Identifying Output Shaft

Courtesy of BMW OF NORTH AMERICA, INC.
