31 12 090 Removing and installing/replacing left or right leading link (AWD)
WARNING: This page is about a different variant/trim than selected.
Special tools required:
NOTE:
If the leading link is detached from the front axle support, it is necessary after installation to carry out a wheel alignment.
Necessary preliminary tasks
- Remove GUIDE JOINT FROM SWIVEL BEARING
- If necessary, REMOVE REINFORCEMENT COVER .

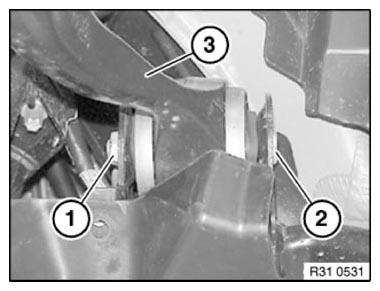

Slacken nut (1).
Tightening torque 31 12 5AZ .
Remove screw (2) to one side and remove leading link (3) with guide joint.
Installation note:
Replace self-locking nut.
Tighten bolt connection in NORMAL POSITION .
If necessary, screw nut (1) onto guide joint by a few turns.

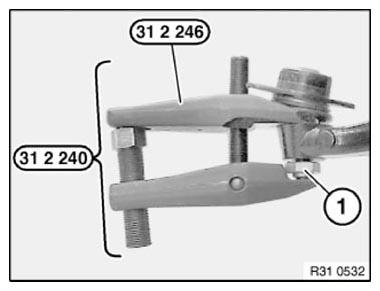

If necessary, replace lower section 31 2 242 with lower section 31 2 246
31 2 240 Press guide joint with special tool out of leading link.
Unscrew nut (1) and remove guide joint.
Installation note:
Keep journal on guide joint and bushing in leading link clean and free from oil and grease.
After installation:
- Perform chassis/wheel alignment check . See 32 00 150 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or 32 00 155 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD
