31 12 026 Removing and installing/replacing guide joint in swivel bearing (AWD)

WARNING: This page is about a different variant/trim than selected.

Special tools required:

Necessary preliminary tasks

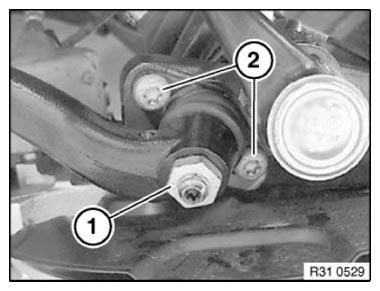

Slacken nut (1), grip with Allen key if necessary.

Tightening torque 31 12 6AZ .

Installation:

Replace self-locking nut.

Unfasten screws (2).

Remove guide joint with compression strut from opening in swivel bearing.

Tightening torque 31 12 7AZ .

Installation:

Recondition thread in swivel bearing.

Fig 1: Identifying Swivel Bearing Nuts And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Keep guide joint and opening in swivel bearing clean and free from oil and grease.

Replace microencapsulated screws.

Guide joint tightly seated in swivel bearing:

IMPORTANT: The guide joint must be replaced once it has been driven out with the special tool.

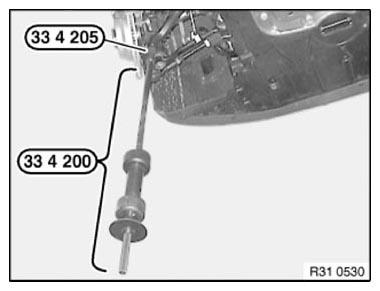

33 4 205 Unscrew nut and screw special tool onto guide joint.

33 4 200 Drive guide joint out of swivel bearing with special tool.

Fig 2: Removing Guide Joint Out Of Swivel Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

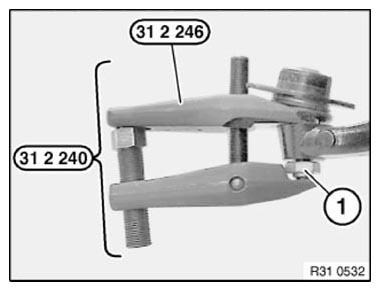

If necessary, screw nut (1) onto guide joint by a few turns.

If necessary, replace lower section 31 2 242 with lower section 31 2 246

31 2 240 Press guide joint with special tool out of compression strut.

Unscrew nut (1) and remove guide joint.

Installation:

Keep journal on guide joint and bushing in compression strut clean and free from oil and grease.

Fig 3: Removing Guide Nut Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
