31 12 000 Removing and installing/replacing left or right control arm (AWD)
Special tools required:
Necessary preliminary tasks
- Remove FRONT WHEEL .
Version with xenon lights:

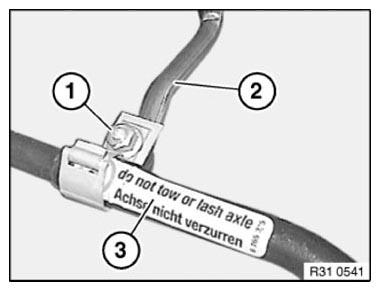

Release nut (1) and remove jointed rod (2) from control arm (3).
Installation:
Replace self-locking nut.
Tightening torque 37 14 3AZ .

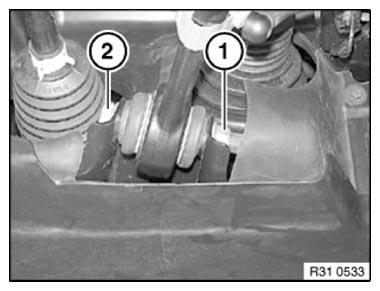

Release nut (1) and remove bolt (2) towards front.
Press swivel bearing in area of compression strut outwards and remove control arm from front axle carrier.
Installation:
Make sure that diesel enclosure is correctly positioned to side of control arm.
Replace self-locking nut.
Tightening torque 31 12 3AZ .

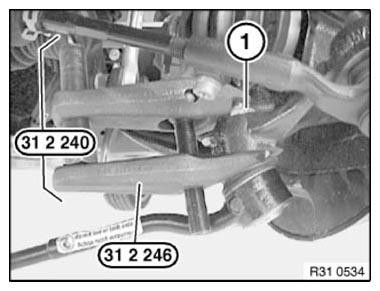

Release nut (1) approx. 3 - -4 thread turns; if necessary, grip at hexagon.
If necessary, replace lower section 31 2 242 with lower section 31 2 246 .
Press off wishbone from swivel bearing using special tool 31 2 240 (consisting of 31 2 241 , 31 2 243 , 31 2 244 , 31 2 245 and 31 2 246 ).
Unscrew nut (1) and remove control arm.
Installation:
Keep journal on ball head and bushing in swivel bearing clean and free from oil and grease.
Replace self-locking nut.
Tightening torque 31 12 4AZ .
After installation:
- Perform chassis alignment check . See 32 00 150 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or 32 00 155 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD
- Carry out STEERING ANGLE SENSOR ADJUSTMENT .
